Premium Sheet Metal Parts Manufacturing Services

Qingdao RuiRui Machinofacture Co., Ltd. specializes in producing high-precision sheet metal parts with enterprise-grade capabilities since 2008. Originating from Qingdao, China, near the strategic port hub, we offer competitive MOQ of 1,000 pcs with flexible delivery timelines of 20-45 days.

Our office forms both steel and stainless steel materials through progressed creation strategies. With ISO 9001:2015 certification and strict quality control frameworks, we keep up dimensional resistances as tight as ±0.5mm on expansive gatherings. Our one-stop generation capability—from crude fabric acquirement to wrapped up item testing—ensures taken a toll investment funds of 20-30% compared to exchanging companies, whereas our devoted R&D group gives comprehensive OEM/ODM bolster for custom metal creation projects.

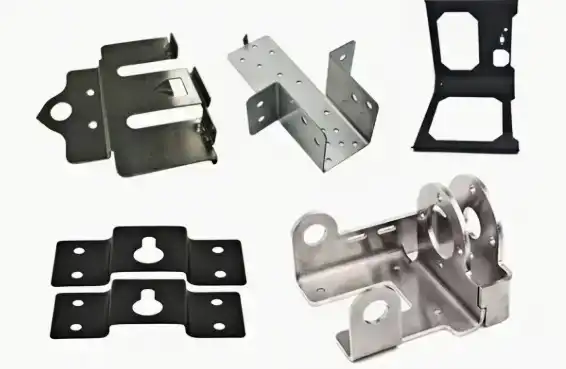

What Are Sheet Metal Parts?

Sheet metal components are created from level metal sheets through cutting, twisting, shaping, and joining forms. These flexible parts run from straightforward level boards to complex three-dimensional structures that serve as basic components over numerous industries.

The thickness classification things essentially in fabricating. Fabric extending from 0.5mm to 6mm is considered sheet metal, whereas more slender gages are classified as thwart and thicker materials ended up plate steel. This qualification straightforwardly impacts the manufacture strategies and tooling requirements.

Our fabricating prepare starts with exactness fabric determination. We source certified steel (SPCC, HSLA) and stainless steel (304, 316) grades based on your application necessities. Progressed laser cutting and CNC punching innovations guarantee clean edges and exact gap positioning.

Manufacturing Capabilities & Process

Our state-of-the-art office combines conventional craftsmanship with present day robotization. We utilize 20+ CNC machines nearby devoted sheet metal creation hardware to handle ventures from model to mass production.

Cutting Technologies:

Laser cutting exceeds expectations at complex forms and low-to-medium volume orders with zero tooling costs. Our fiber laser frameworks accomplish kerf widths as limit as 0.1mm for complex designs.

CNC punching conveys prevalent speed for high-volume generation requiring standard gaps, louvers, or decorated highlights. This strategy diminishes per-piece costs essentially when amounts surpass 5,000 units.

Forming & Bending:

We keep up strict control over twist sweep to protect fabric judgment. Our press brake administrators take after the 1x fabric thickness run the show for steel and aluminum, anticipating push breaks and breaking. Exactness tooling guarantees repeatable twist points inside ±0.5 degrees.

Welding & Assembly:

TIG, MIG, and spot welding capabilities permit us to make vigorous congregations. We utilize welding installations and post-weld fixing to check warm twisting, keeping up dimensional precision indeed on huge fabrications.

Surface Finishing:

All parts experience deburring procedures—automated tumbling, vibratory wrapping up, or manual grinding—to accomplish secure edge span underneath 0.05mm burr tallness. Powder coating gives the most cost-effective erosion assurance for carbon steel, with salt shower test comes about surpassing 500 hours per ASTM B117 standards.

Technical Specifications of sheet metal parts

Parameter	Specification
Material Options	Steel (SPCC, HSLA), Stainless Steel (304, 316, 316L)
Sheet Thickness	0.5mm - 6mm
Max Processing Size	2,000mm × 1,000mm
Tolerance (Flat Parts)	±0.2mm
Tolerance (Assemblies)	±0.5mm
Bend Radius	≥1x material thickness
Edge Finish	Deburred <0.05mm
Surface Treatment	Powder Coating, Anodizing, Galvanizing, Electroplating
Minimum Order Quantity	1,000 pcs
Lead Time (Prototype)	7-14 days
Lead Time (Production)	20-45 days
Origin	Qingdao, China

Industry Applications

Automotive & Transportation:

Our sheet metal parts form the structural foundation for vehicle chassis components, mounting brackets, and body panels. We supply high-strength low-alloy (HSLA) steel parts that meet crash-impact safety standards while reducing overall vehicle weight. These components withstand continuous vibration and extreme environmental conditions.

Telecommunications & Electronics:

Server racks, open air cabinets, and control board walled in areas require IP65-rated climate security. We create galvannealed steel lodgings with EMI/RFI protecting properties. Accuracy punching designs optimize warm scattering and wind stream administration for thermal-sensitive equipment.

Medical Gadget Manufacturing:

Sterile situations request medical-grade 316 stainless steel manufactures. Our components for MRI machine casings and surgical instrument plate include non-porous surface wraps up that stand up to chemical sterilization specialists and avoid bacterial development, assembly rigid healthcare regulations.

Industrial Machinery:

From defensive watches to gear walled in areas, our metal manufactures give strength in cruel fabricating situations. Custom brackets and mounting plates back overwhelming apparatus whereas keeping up exact arrangement beneath operational stress.

Quality Control & Certification

Your extend victory depends on reliable quality. We execute comprehensive review conventions at each generation arrange, guaranteeing each clump meets your correct specifications.

Inspection Procedures:

First Article Review (FAI) confirms starting generation tests against your drawings. Our CMM (Arrange Measuring Machine) approves gap positions and twist points per ISO 2768 benchmarks, giving point by point dimensional reports.

Flatness estimations distinguish distorting from warm stretch amid laser cutting. We screen and compensate for heat-affected zones to keep up portion geometry inside resilience bands.

Surface treatment attachment experiences Cross-Cut Tape Testing (ASTM D3359) for powder-coated and painted parts. This guarantees coating solidness beneath real-world conditions counting chemical presentation and mechanical wear.

Weld quality confirmation incorporates visual review, infiltration testing, and dangerous examining on generation clusters. Non-destructive testing (NDT) strategies approve auxiliary judgment for safety-critical applications.

Documentation & Traceability:

Every arrange gets total fabric certification (MTC) archiving chemical composition and mechanical properties. PPAP documentation bundles give full traceability from crude fabric to wrapped up assembly.

Our ISO 9001:2015 certified office keeps up thorough prepare controls. Normal reviews and ceaseless change activities guarantee we surpass worldwide quality guidelines consistently.

Why Select RuiRui for Your Project

Direct plant estimating kills go between markups, conveying 20-30% fetched reserve funds compared to exchanging companies. You advantage from straightforward communication with our generation group, guaranteeing your details are caught on and executed precisely.

Our area close Qingdao Harbour streamlines universal shipping coordinations. Adaptable Incoterms (EXW, Dandy, DDP) suit your favored conveyance courses of action, whether you oversee cargo or require door-to-door service.

One-stop fabricating capability implies quicker lead times and streamlined venture administration. From beginning plan discussion through last bundling, a single point of contact facilitates each generation arrange, dispensing with delays caused by multi-vendor coordination.

Our experienced R&D group helps with plan optimization, fabric choice, and handle proposals. This OEM/ODM ability makes a difference you maintain a strategic distance from expensive overhauls and generation delays, especially profitable when bringing modern items to market.

Strict quality benchmarks supported by ISO 9001:2015 certification give certainty in steady yield. Whether you arrange 1,000 pieces or 100,000 pieces, the same thorough assessment conventions guarantee each portion meets specification.

FAQ

Q: How does twist span influence the astuteness of the product?

A: Least twist span is basic for anticipating push breaks. Fabric thickness decides the secure bowing limit—too tight a sweep causes splitting. We suggest a sweep of at slightest 1x the fabric thickness for steel and aluminum. Our press brake administrators utilize exactness tooling to accomplish steady, crack-free twists that keep up fabric strength.

Q: What is the most cost-effective surface wrap up for carbon steel parts?

A: Powder coating conveys the best esteem for mellow steel (SPCC) applications. It gives prevalent erosion resistance compared to damp portray, with salt splash test comes about confirmed by ASTM B117 measures. The handle makes a solid, uniform wrap up that withstands mechanical situations whereas remaining financially reasonable for huge generation runs.

Q: Can you keep up strict resiliences on welded assemblies?

A: Welding presents warm twisting that influences dimensional exactness. For tight resistances (±0.5mm on expansive gatherings), we utilize welding installations that oblige parts amid warm cycles. Post-weld rectifying and particular machining operations reestablish exactness where basic measurements must be maintained.

Q: What is the contrast between laser cutting and CNC punching?

A: Laser cutting suits complex forms and low-to-medium volumes with no tooling venture required. It gives greatest plan adaptability for custom shapes. CNC punching exceeds expectations at high-volume generation requiring numerous standard gaps or louvers—per-piece costs drop altogether over 5,000 units due to quicker cycle times.

Q: How do you handle sharp edges on created parts?

A: All laser-cut and punched parts experience deburring to make secure, smooth edges. We utilize computerized tumbling for little parts, vibratory wrapping up for medium bunches, and manual crushing for huge components or tight-access zones. Edge sweep details can be customized to your security and get together requirements.

Q: Do you offer model administrations some time recently mass production?

A: Yes, we give model improvement with zero MOQ confinements. Test parts regularly dispatch inside 7-14 days, permitting you to approve shape, fit, and work some time recently committing to full generation tooling. Our building group offers free DFM (Plan for Manufacturability) investigation to optimize your plans for cost-effective generation.

Contact Us

Ready to discuss your sheet metal parts requirements? Our engineering team provides free quotes within 48 hours of receiving your CAD files. Contact us today to start your project.
